Maximum Mini Split Line Set Length: How Far Can You Run Refrigerant Lines?

Key Takeaways

• Most mini splits come pre-charged for about 25 feet of line set, and with single-zone systems you can usually run the lines somewhere between 50 and 100 feet depending on the brand and how many BTUs the unit has.

• The maximum line set length for a mini split system is determined by the manufacturer's specifications - always check your installation manual for the maximum length, the vertical separation and the refrigerant charge requirements.

• If you go past the maximum line length you can void the warranty, lose 5% to 15% of the unit's capacity, and run into problems with the compressor not being able to return oil properly.

• Longer pipes use more energy, and in hot markets like Mesa or Phoenix, running line sets through attics that hit 120°F or more makes those losses worse even when you're still under the maximum.

• Handling refrigerant isn't a DIY job. You need EPA Section 608 certification to do it legally.

Why Mini Split Line Set Length Matters

I see a lot of homeowners planning a mini split installation without thinking about how far the refrigerant lines actually need to run. A line set is the pair of copper refrigerant lines - one small liquid line, one larger suction line - plus communication and power cable connecting your indoor unit to the outdoor unit. Line set length means the total developed length of that piping, including every bend and turn, not just a straight shot through the wall.

Going too long causes real problems. You can get heat loss in heating mode, heat gain in cooling mode, pressure drop in the refrigerant flow, oil return issues and you need extra refrigerant charge. Here in Mesa, 2024 set the Phoenix record with 70 days at 110°F or above, and attic temperatures can easily hit 140°F. That means paying attention to the maximum lengths and insulation matters a lot more than what generic pamphlets tell you.

Below I'll go over typical factory lengths, absolute limits, performance trade-offs and when you might need a licensed pro.

Maximum Line Set Lengths for Mini Splits

How long can a mini split line set be? Most systems come pre-charged for a standard length of about 25 feet. A 50 ft line set length is a common industry standard for efficient operation, and the maximum allowable length varies by brand, model and configuration. Single-zone systems generally allow line lengths between 50 and 100 feet. Panasonic's 18–24k BTU units allow up to 100 ft, for example, while residential systems typically have shorter maximums on smaller-capacity models - sometimes only 49–66 ft.

Here's how the different system types compare:

• Single-zone ductless mini splits: The common maximum lengths range from 65–100 ft, and the vertical separation limits are around 25–50 ft.

• Multi-zone systems: These can support total piping lengths of 230 to 262 feet across all units, but each individual branch run has its own limit.

• Concealed duct mini splits: Refrigerant line limits can still apply separately from duct length.

Manufacturer specs usually list three numbers: the minimum line set length (often 10 ft), the length that the factory charged it for where you don't need extra refrigerant. The absolute top length for the line set. If you go past the published maximum you can void warranties, get performance issues that are hard to diagnose, and go against best practice.

How Long Line Sets Affect Performance

Longer refrigerant lines mean there are more places for heat loss or heat gain. The compressor has more work to do. Longer line sets can reduce overall system efficiency by 5% to 15%, and that's based on clean installs. It can get worse with poor insulation or extreme heat.

During cooling, the suction line is carrying cold vapor back to the outdoor unit. Longer runs through hot spaces like attics let that line absorb heat, which raises the suction temperature and cuts the capacity. In heating mode, long exposed runs lose heat to cold outdoor air, so you'll get fewer delivered BTUs indoors. Inadequate insulation can increase energy consumption through heat loss in both modes.

Long line sets also cause higher pressure drops in the refrigerant flow. The pressure drop is affecting the mass flow rate, which directly reduces the effective capacity of the system. The size of the piping is important too. Manufacturers are sizing the line widths assuming typical lengths, and if you stretch far beyond those without changing sizes it can hurt system efficiency. Going past the recommended line set length clearly reduces energy efficiency numbers.

Elevation differences can mess up oil return in mini split systems. Improper elevation can cause refrigerant to pool in the piping, and on longer runs oil can get trapped in low spots and keep the compressor from getting enough oil. Over time that can lead to noisy operation, overheating or compressor failure, even if the system seems to cool fine at first.

Even when you're within the maximum length, expect some capacity loss compared to the performance the lab rated it at. That part is rarely in big print.

Maximum Length, Vertical Separation and Refrigerant Charge

Every serious manufacturer has exact limits that are out there. Here's what to look for on a spec sheet:

Spec Field	What It Means	Typical Range
Standard line set length	Factory pre-charge covers this	25–33 ft
Maximum line set length	Absolute limit with added charge	49–100+ ft
Maximum vertical separation	Height difference, indoor vs outdoor	25–50 ft
Extra refrigerant per foot	Added charge beyond factory length	0.1–0.3 oz/ft

The outdoor unit ships with a factory refrigerant charge designed for that standard length. For proper performance, refrigerant adjustments are necessary when line set length exceeds factory charge limits. A licensed tech must weigh in additional refrigerant based on the manufacturer's chart - not just "add until it feels cool." ASHRAE provides guidelines for maximum line set performance and insulated copper line sets that techs should reference.

The vertical height difference between indoor and outdoor units usually should not exceed 25 to 50 feet. This protects oil return and prevents liquid refrigerant from piling up in the outdoor unit or indoor coil. Many manufacturers set different limits depending on whether the outdoor unit sits above or below the indoor unit.

Safety note: Handling refrigerant and changing charge needs EPA Section 608 certification and proper recovery equipment. You can handle the path, mounting brackets and pouring pads, but refrigerant lines and charge are a licensed job.

Planning Your Line Set Route and Keeping Length Reasonable

Before you buy a kit or hire a contractor, measure the real route. Follow the actual path, up the wall, through the attic, across the joists, down the other side. Add a few feet for service loops and turns. A proper install should keep turns and kinks to a minimum to maintain efficiency, since every 90° elbow adds equivalent length.

Here's how to cut unnecessary run distance:

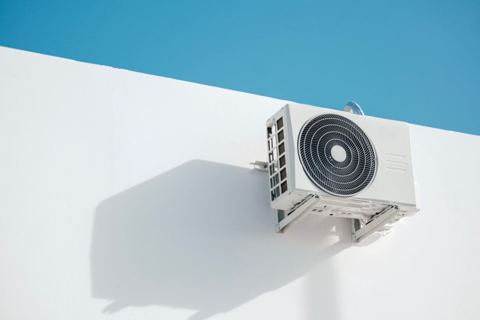

• Place the outdoor unit as close as you can to the primary indoor unit while keeping space around it and noise in mind.

• Run directly through the wall behind the indoor head when the code lets you do that, rather than going around rooms.

• Avoid unnecessary attic turns back and forth. Take the shortest safe path.

When You're Near the Maximum Length

When your planned line set length is within 10–15% of the published maximum, that's when you're in the danger zone.

• Long attic or roof-perimeter runs that are baking most of the year

• Exceeding maximum vertical separation

• Needing a lot of tight turns around framing or architectural features

Better alternatives when runs are too long:

• Move the outdoor unit closer to the indoor head, even if that means putting it on a different wall or pouring a new concrete pad

• You can use two smaller mini splits in different zones instead of one oversized system with very long line sets

• Consider a concealed duct unit placed more in the center so you don't need such extreme piping distance

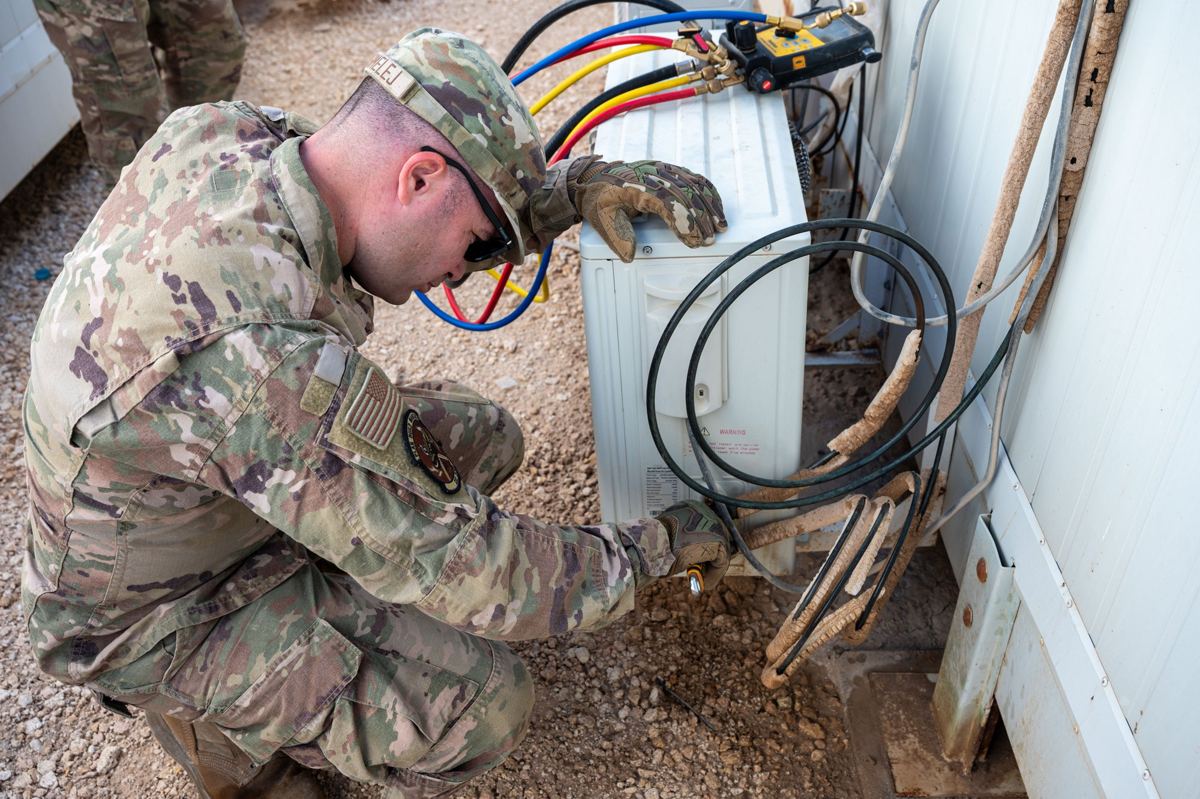

If a system was installed at or beyond maximum length without correct refrigerant charge, you might see long run times, poor cooling on extreme days, ice on refrigerant lines or higher power bills. Any diagnosis involving pressures or charge needs a licensed tech with gauges and a scale.

Mini Split Line Set Length and Refrigerant Lines FAQ

Can you extend a mini split line set?

Yes, but only if you stay within the manufacturer's maximum line set length and vertical separation limits. A licensed tech must adjust the refrigerant charge per the manual. Pre-flared DIY kits often assume a fixed length. Changing those lines usually kills the warranty and turns it into a pro-only job.

Do I need thicker insulation on longer refrigerant lines?

Thicker insulation may be necessary for line sets over 50 feet. ASHRAE has guidelines for insulated copper line sets. Follow those as a minimum, then go a step above in extreme climates. Closed-cell insulation with UV-resistant covering on exterior runs and sealed seams will help maximize performance and eliminate sweating and mold risk.

Can long line sets make your mini split freeze up?

Yes. Long runs combined with wrong refrigerant charge or poor airflow can lead to low suction pressure and ice forming on the indoor coil or refrigerant lines. If you see ice, shut the system off immediately. Continuing to run it can damage the compressor. Call a licensed tech. This is not a problem you can troubleshoot with common household parts or tools.
