I get this question almost every week: what size breaker for a mini split? The short answer is that it depends on two numbers printed on your outdoor unit, not on a generic chart. Let me walk you through exactly how to find those numbers, what they mean, and how to pick the right breaker without guessing.
Key Takeaways
-
The correct breaker size always comes from two numbers on the nameplate that is on the outdoor unit: MCA (Minimum Circuit Ampacity) and MOCP/MOP (Maximum Overcurrent Protection). These are the only reliable sizing numbers.
-
Never use a breaker larger than the MOCP number, even if your panel has space for a larger one. This is a violation of code and it creates a safety hazard.
-
Rough examples: most 9,000–12,000 BTU mini splits land on a breaker that is 15A–20A, 18,000–24,000 BTU on a breaker that is 20A–25A, and 30,000–36,000 BTU on a breaker that is 25A–35A. But these are only rough figures, not rules.
-
You need a 15-amp to 30-amp circuit breaker for most residential mini split air conditioning systems, with common sizes ranging from 15 amps to 60 amps for larger multi zone setups.
-
Every mini split needs its own circuit, and the wire gauge has to be the right size to match the nameplate specs. Have a licensed electrician make the final call on installation.
Mini Split Breaker Size in Plain English
Here's what I tell you before we dive into the details: there is no single "standard" breaker size for a mini split system. Even two 12,000 BTU units from different brands can use different breakers because they have different amp draw and nameplate ratings. The values for MCA and MOCP can be different even among units with the same BTU rating.
Let me show you with real examples. With a 12,000 BTU single-zone at 230V, you might see an MCA of 13A and MOCP of 15A, so you'd use a 15A double pole breaker. Running a 24,000 BTU unit at 230V could show MCA 24A and MOCP 25A, which lands you on a 25A double pole breaker. For a 36,000 BTU unit at 230V, the nameplate might read MCA 28A and MOCP 35A, which means you need a 35A breaker.
Do not size the breaker based on the BTU rating alone. Those online BTU-to-breaker charts floating around? They're only a rough guess. The correct breaker size is always taken from the electrical data for the specific mini split you have. The manufacturer data is on the nameplate or in the installation manual. The nameplate data is what you need to figure out the electrical requirements.
Breaker size and wire gauge must be chosen together based on those nameplate numbers, local electrical code and your real installation conditions.
Two Numbers for Mini Split Breaker Size
Your mini split electrical requirements are on the data label on the outdoor unit. Two numbers on that label decide both your breaker size and your minimum wire size. On the specification plate, you must check for MCA and MOCP values. Everything else is secondary.
MCA (Minimum Circuit Ampacity) is the minimum amount of current your circuit wire must be able to carry. MCA shows the minimum circuit ampacity that is needed for wiring. If your unit shows MCA 19A, then the wire's amp rating must be at least 19A after you account for temperature derating and run length. MCA is what you use to figure out the wire size needed for the mini split. MCA shows the minimum wire gauge that is needed for the electrical load. The manufacturer already builds in a 125% safety factor for the compressor motor, so you do not multiply MCA again.
MOCP or MOP (Maximum Overcurrent Protection) is the ceiling for your breaker or fuse size. MOCP is the maximum overcurrent protection that is allowed for the system. If MOCP reads 25A, you cannot legally or safely install a breaker that is 30A. MOCP must not go above the equipment's marked maximum rating. It's set higher than MCA so the compressor can start up without causing a trip that is a nuisance.
BTU, SEER and brand do not directly set breaker size. MCA and MOCP are the only reliable numbers. For example, a 24K mini split usually has a 24A MCA and 25A MOCP. But confirm yours on the label, not from a chart.
How to Pick a Mini Split Breaker
Here's the practical process I recommend that you go through before you call an electrician:
-
Turn off panel power. You can locate the outdoor unit nameplate or look up the technical brochure. Read the voltage, MCA and MOCP values. For example, you might see "208/230V, MCA 18A, MOCP 25A".
-
Confirm the voltage class. A 115/120V mini split uses a single pole breaker. With a 208/230V mini split, you use a double pole breaker. Usually, 115V units need a single-pole breaker and 208V or 230V units need a double-pole breaker. Don't overthink the "110 vs 220" slang. Those are the same two voltage classes.
-
Use MCA to choose your minimum wire amp rating. Wire gauge depends on the MCA value and how long the run is. In hot climates like Mesa, AZ, where Phoenix hit 110°F or hotter for 31 straight days in summer 2023, wire runs through attics or sun-exposed conduit may need to be sized larger than the bare MCA to handle temperature derating.
-
Pick a breaker that does not exceed MOCP. If MOCP is 25A, you use a 25A breaker, not a 30A "because that's what you have." Never use a breaker larger than the MOCP for any HVAC equipment.
-

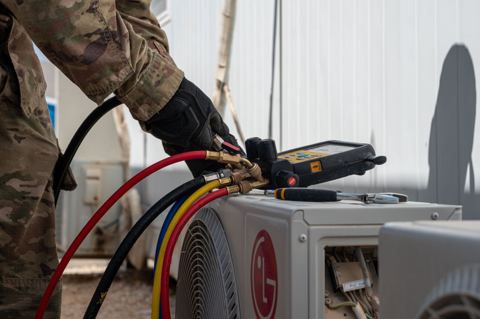

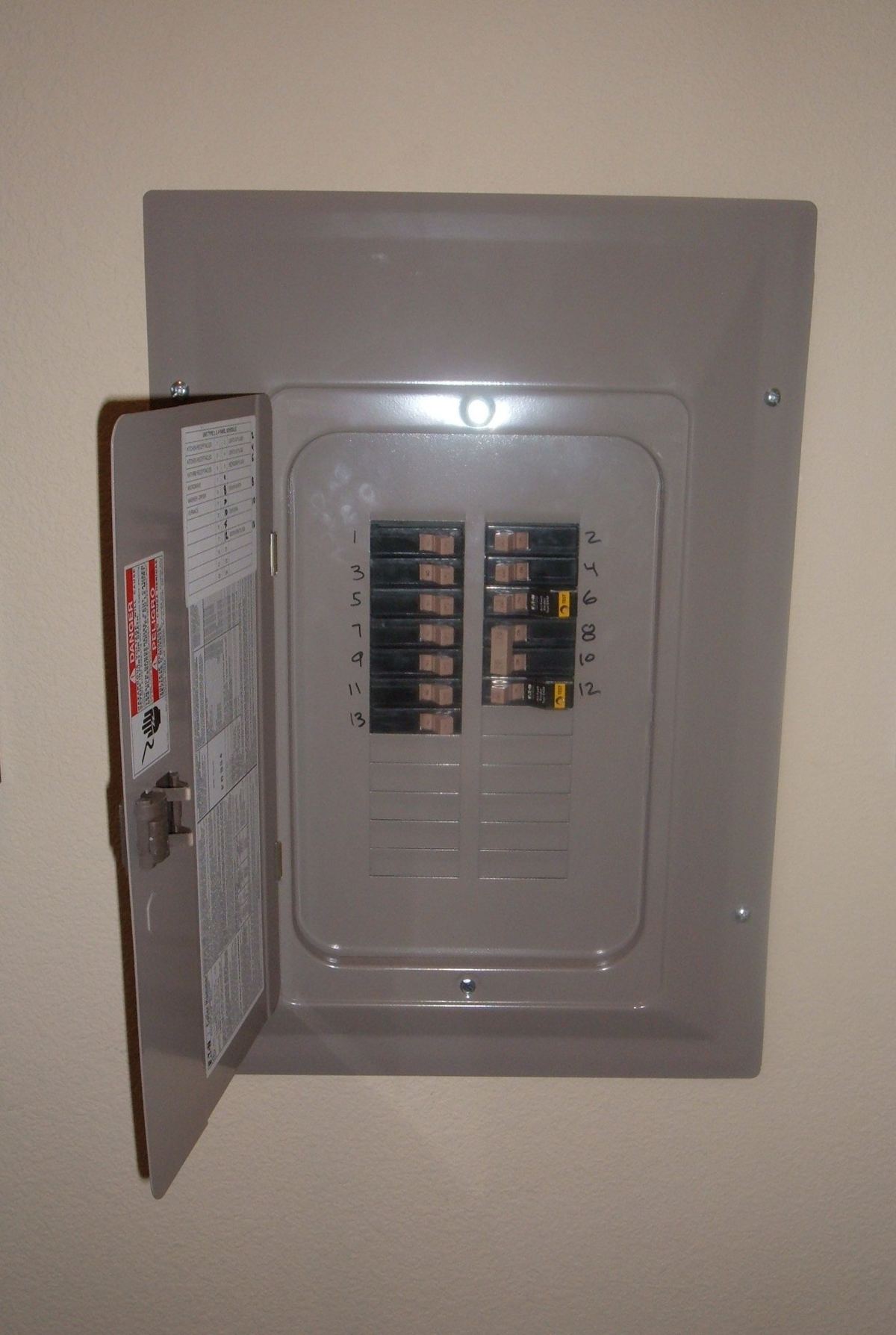

Confirm panel capacity and that the circuit is dedicated. Mini splits need a dedicated circuit for safe operation. There are no other outlets or loads on that circuit. Dedicated circuits prevent breaker trips from startup surges and keep you code-compliant.
Breaker Sizes for Common Mini Split Setups
| BTU Range | Voltage | Typical Amp Draw | Common Breaker Size |
|---|---|---|---|
| 9,000 BTU | 115V | 8–12 amps | 15A–20A single pole |
| 12,000 BTU | 230V | 10–15 amps | 15A double pole |
| 18,000–24,000 BTU | 230V | 15–25 amps | 20A–25A double pole |
| 30,000–36,000 BTU | 230V | 20–30 amps | 25A–35A double pole |
| 48,000–60,000 BTU | 230V | 28–44 amps | 40A–60A double pole |
A 12,000 BTU mini split may require a 15A breaker. A 24,000 BTU mini split typically needs a 25A–30A breaker. A multi zone system-say a 36K outdoor condenser feeding three indoor units-uses one larger breaker sized from the outdoor unit's MCA and MOCP, not from adding up the indoor head BTUs.
High-efficiency inverter mini splits in the same BTU range can have lower amp draw that you can notice and may qualify for smaller breakers than older, less efficient equipment. Under the old SEER rules (2015–2022), a split AC installed in Arizona needed 14 SEER and 12.2 EER below 45,000 BTU/h, so older nameplates from those years may show higher current values than today's inverter models.
If you show me a 24K 230V mini split in Mesa, I usually expect to see something like 24A MCA and a 25A breaker-but I still confirm on the label every time.
Do Mini Splits Need a Dedicated Circuit and What Wire Size?
Yes. Every permanently installed mini split must be on a dedicated circuit. It is not sharing with lights, outlets or other appliances. Mini splits cannot share circuits with other devices. A dedicated circuit is needed for warranty validity on virtually every brand I've worked with.
A shared circuit causes problems fast. When the compressor is trying to start, the electrical current spikes. On a shared circuit, that surge can cause the breaker to trip repeatedly, overheat wiring or even create a fire risk. Most mini splits are hardwired, not plugged into outlets.
You size wire gauge from the MCA, not from the breaker alone. Homeowners often think "20A breaker equals 12 gauge," but HVAC rules under NEC Article 440 are tighter and account for continuous load and compressor behavior. Copper THHN/THWN-2 conductor in conduit is typical from panel to disconnect, while the indoor-to-outdoor communication cable is usually a multi-conductor stranded cable sized per the manual.
The breaker, wire size and mini split electrical requirements must all agree: dedicated circuit, correct voltage, MCA-sized wire and MOCP-sized breaker.
115V vs 230V Mini Splits and Breaker Size
Many homeowners ask "do I need 110 or 220?" Voltage determines the type of circuit breaker needed for mini splits, and it directly affects how many amps the unit pulls.
Most mini splits use either 115V or 208–230V. Smaller units often run on 115V circuits. Most 18,000 BTU and larger units need 208–230V. Higher voltage mini splits draw fewer amps than lower voltage ones for the same BTU and efficiency. That can let you use a smaller wire gauge and have less voltage drop on long runs.
With a 115V circuit, you use a single pole breaker. A 208–230V circuit needs a double pole breaker. Both still need a dedicated breaker and proper wire sizing.
Here's a simple example comparing a 12K unit at each voltage:
-
12K at 115V: MCA ~19A, MOCP 20A → 20A single pole breaker, #12 copper wire
-
12K at 230V: MCA ~13A, MOCP 15A → 15A double pole breaker, #14 copper wire (conditions permitting)
The higher voltage unit draws fewer amps and uses a slightly smaller breaker. In many older Arizona homes, panel space is tight. Sometimes choosing a 230V mini split makes electrical planning easier because the lower amp draw leaves more capacity in your service panel. But the final choice should follow panel layout, available spaces and electrician input.
Breaker Sizing Mistakes on Mini Splits
These are errors I see in the field regularly. If you avoid them, you'll save yourself a failed inspection or a warranty that is voided.
-
Sizing the breaker from BTU alone. Saying "24K equals a 30A breaker" without checking MCA/MOCP is how things go wrong. What breaker and wire you need can be affected a lot by the difference between models.
-
Installing a larger breaker "so it stops tripping." If a correctly sized breaker trips, the real problem is often dirty filters, blocked coils, loose connections, wire that is too small, or a failing compressor. A larger breaker just lets wire overheat before it can protect you from a short circuit.
-
Reusing a general-purpose circuit. One mini split deserves its own dedicated circuit. Tandem breakers or shared circuits with receptacles are not appropriate for a 240V compressor load.
When to Call an Electrician and What to Ask
You can understand the breaker size yourself, but electrical work at the panel should be performed by a licensed electrician-especially in hot markets like Arizona where energy loads are heavy and panel capacity runs tight.
A good electrician will:
-
You can pick a breaker at or under MOCP
-
You can install an outdoor disconnect within sight of the unit
-
Pull any required permits
-
"What breaker size and wire gauge are you using, and why?"
If your Mesa or Phoenix-area home already runs a big AC system, an EV charger or an electric range, calculate whether there's room for a new mini split circuit. SRP's Basic plan (E-23) charges a flat 11.66¢/kWh in summer under May–October 2026 temporary prices, with a monthly service charge of $20–$40 depending on home type and panel size. Adding load matters for both safety and your energy bill.
Always verify local building codes when wiring mini split systems. Doing the mount and line-set work yourself is fine, but the breaker, wire gauge and dedicated circuit design need to be safe, inspected and code-compliant.
FAQ
Can I put my mini split on a larger breaker if the recommended size keeps tripping?
No. Increasing breaker size above the MOCP rating is never safe or code-compliant. It can allow the wire and equipment to overheat before the breaker trips, creating a fire hazard. If a correctly sized breaker trips repeatedly, check for dirty filters, blocked condenser coils, loose connections or wire that is too small first. Call an electrician or HVAC tech to diagnose the issue. Don't just throw a larger breaker at the problem.
Can a Mini Split Share a Circuit With Outlets?
A mini split should be on a dedicated circuit with nothing else on it. No receptacles, no lighting, no other appliances. Shared circuits are more likely to trip during compressor startup when the amp draw spikes. Most manufacturers will void the equipment warranty if the unit isn't on its own circuit. Inspectors will flag this too.
Can I Use a Tandem Breaker for My Mini Split?
Many 208/230V mini splits need a full-size double pole breaker, not a tandem. Whether tandems are even allowed depends on your panel's labeling and local code. Rather than forcing a mini split onto a breaker type that is not appropriate, have an electrician look at options like adding a subpanel, re-arranging existing circuits or upgrading the panel.
Why does my 24K mini split call for a 25A breaker instead of 30A?
HVAC manufacturers use 25A and 35A as standard MOCP sizes based on how that specific model was listed and tested. The rating is tied to the equipment's internal protection and wiring, not to what seems normal for household circuits. You must match the breaker size to the MOCP number on the nameplate, even if 25A feels unusual compared to everyday breaker sizes you're used to seeing.
